TEKAL 1

Family Aluminium - Electronic enclosures - Metal

Description

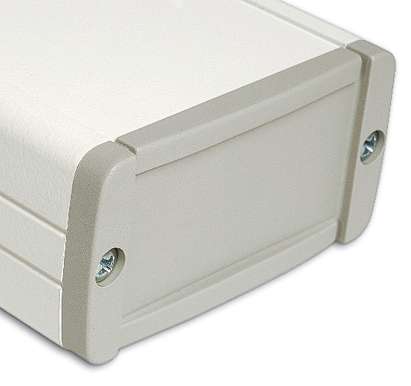

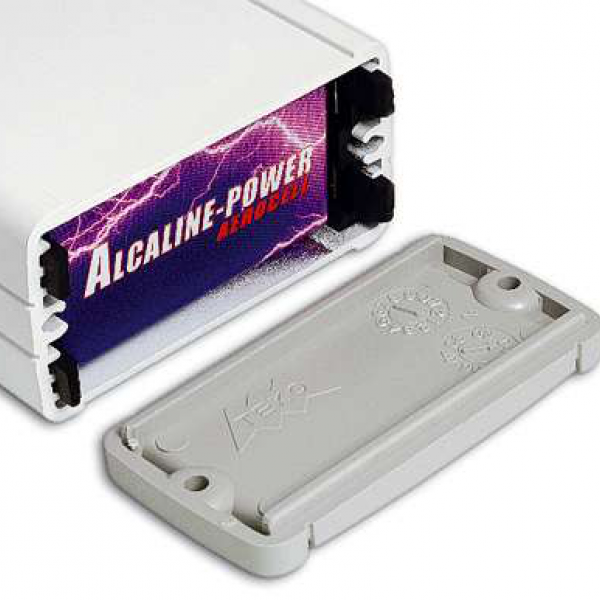

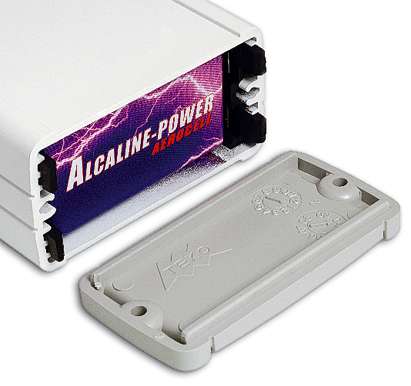

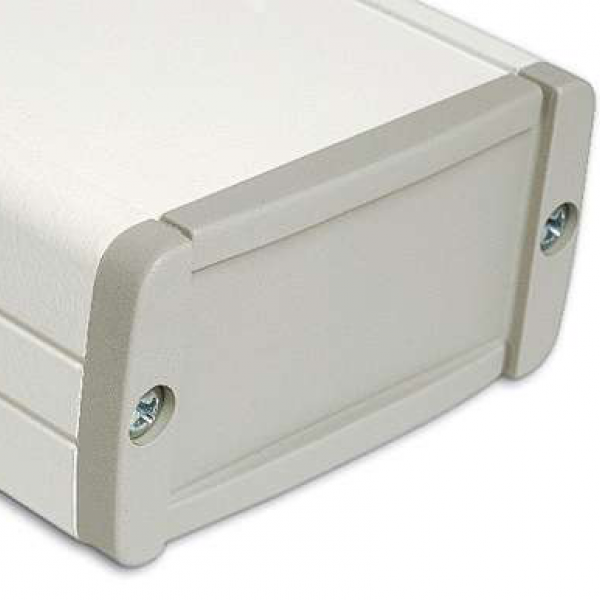

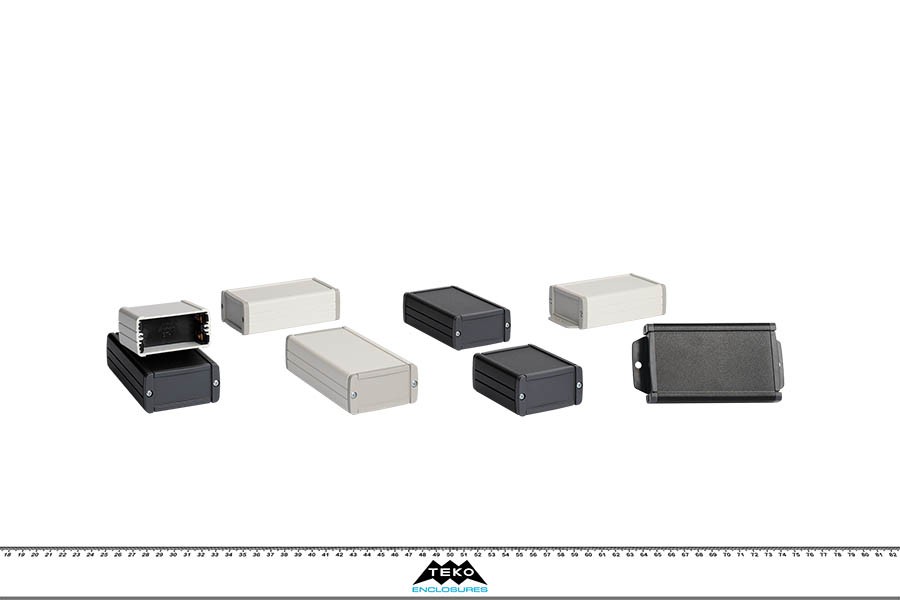

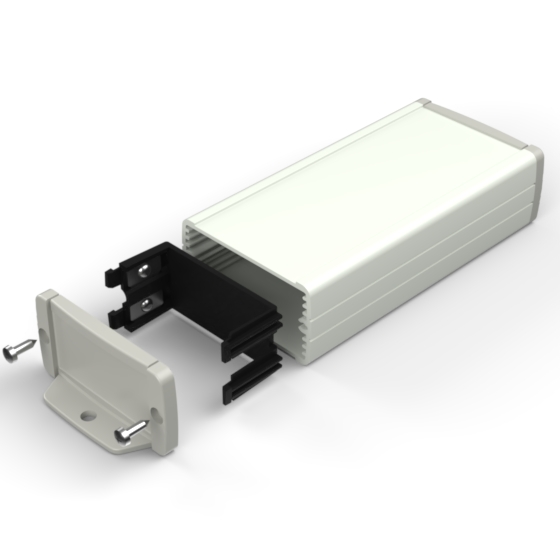

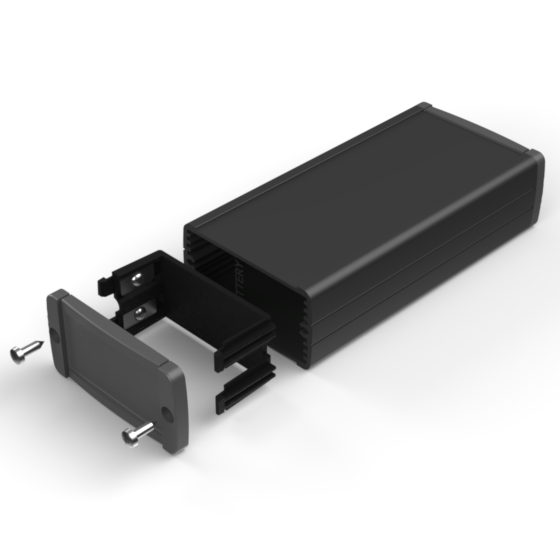

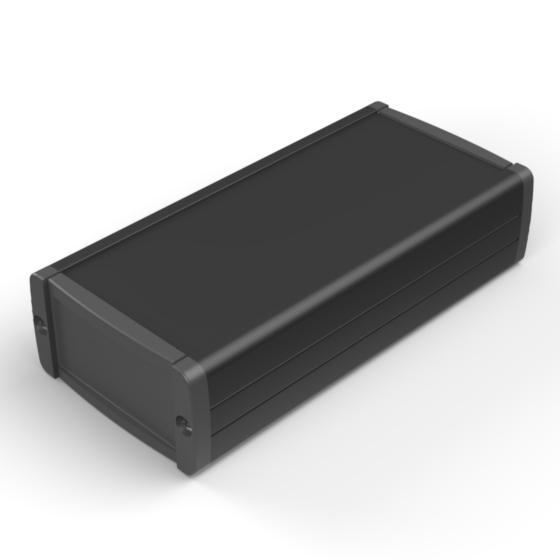

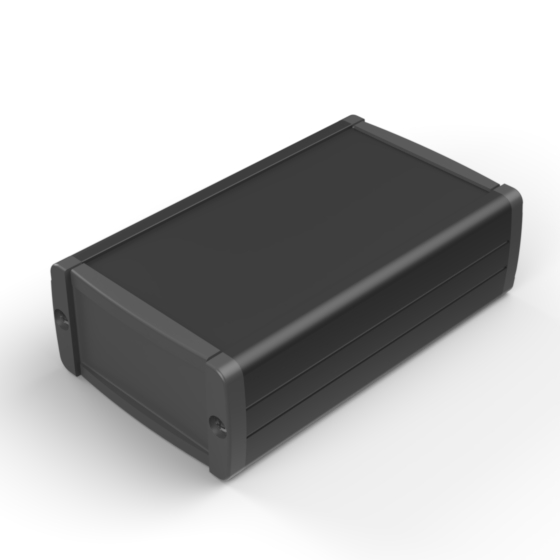

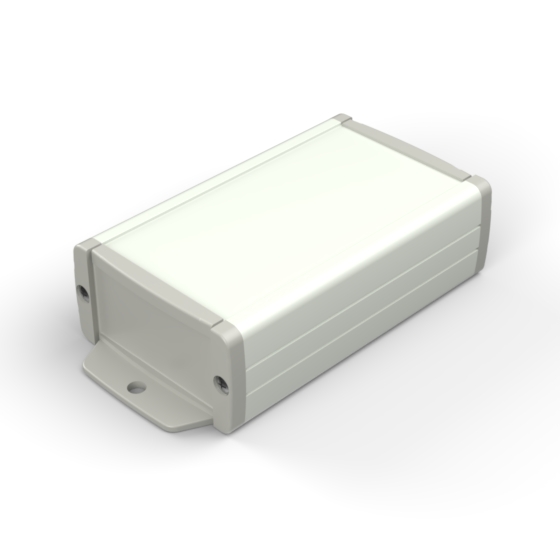

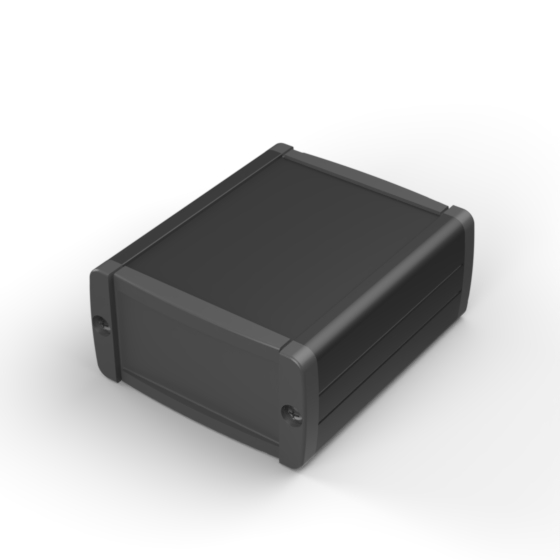

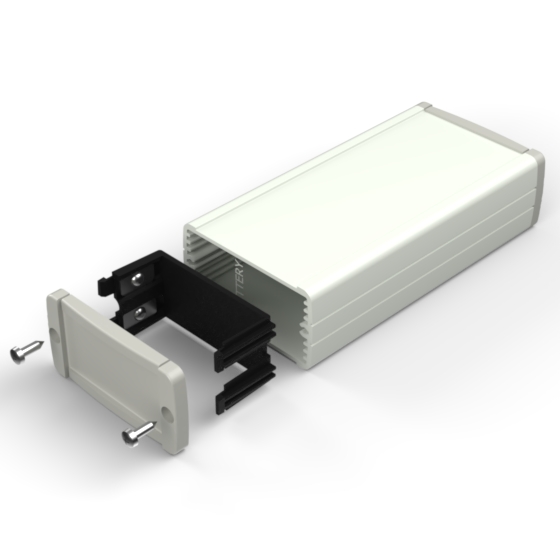

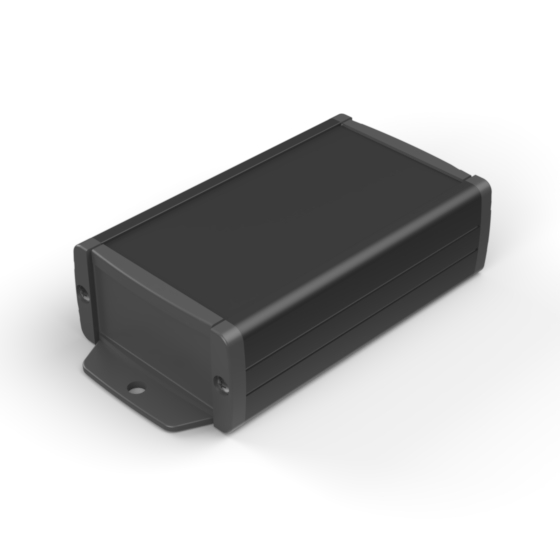

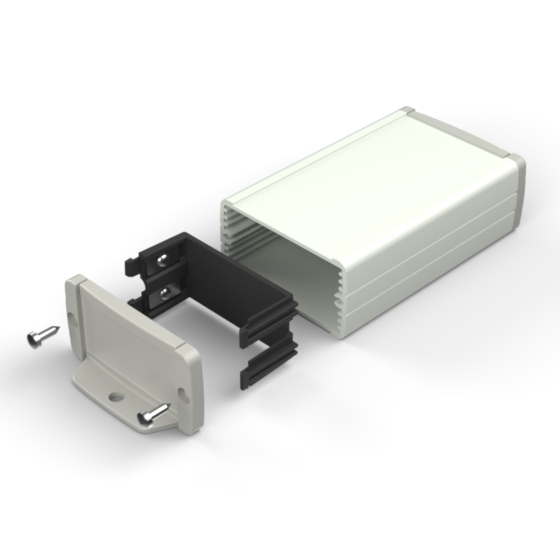

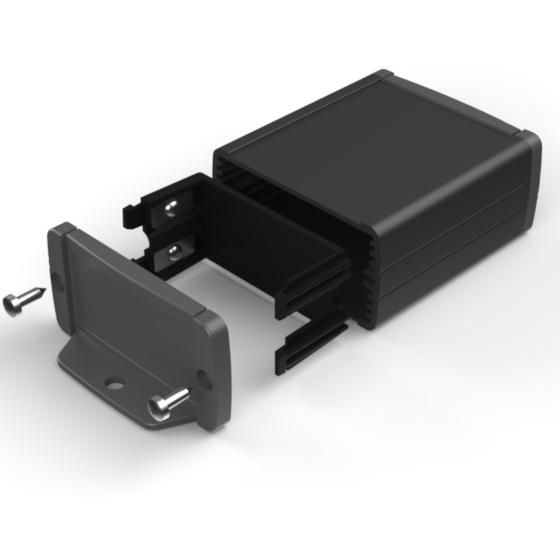

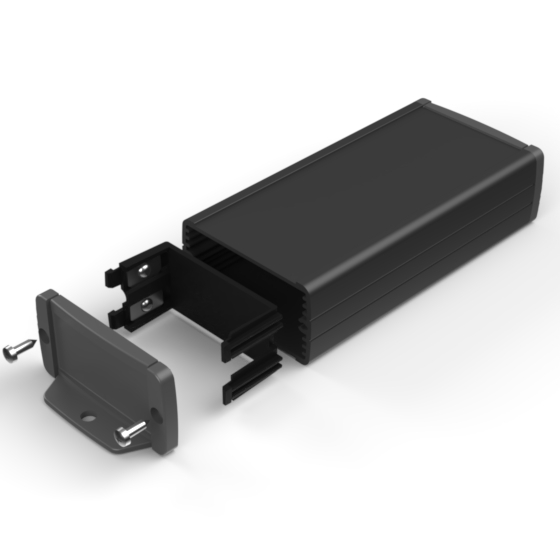

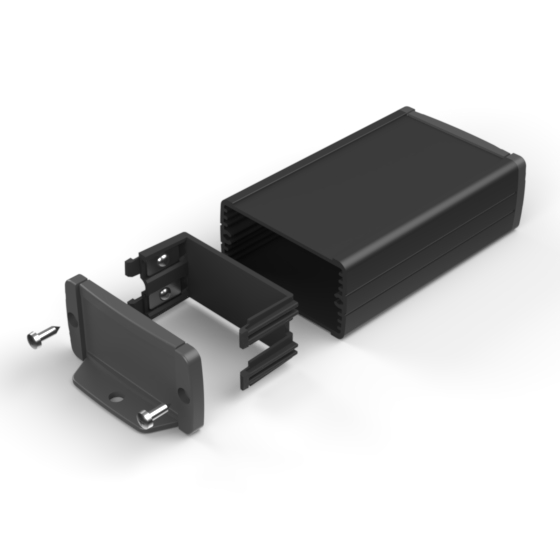

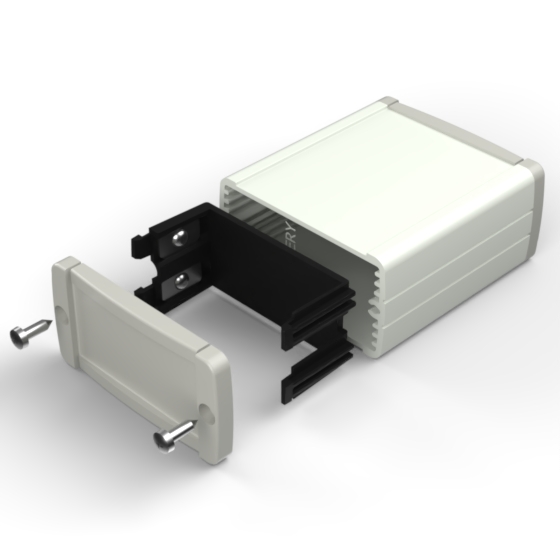

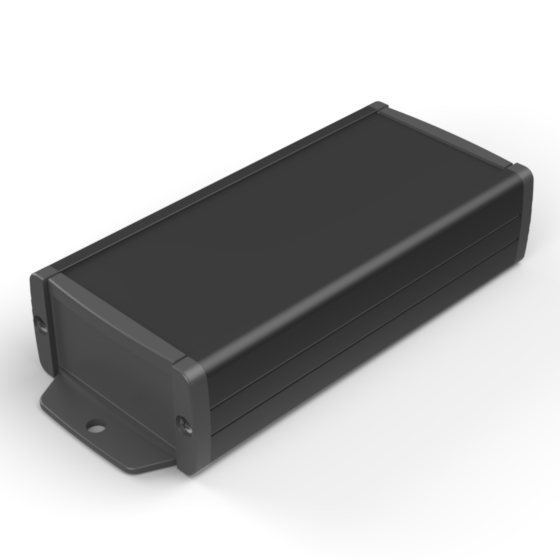

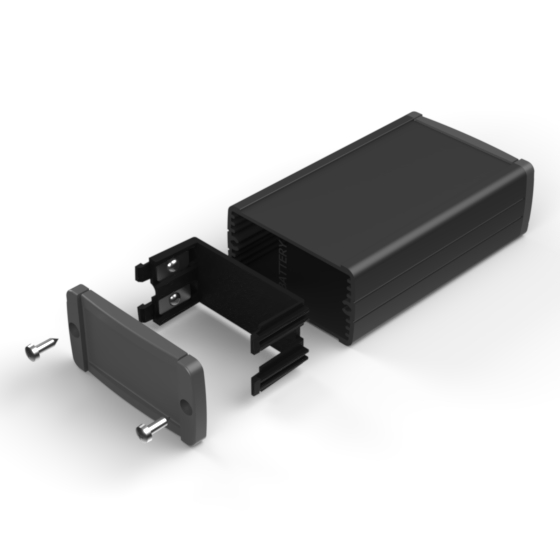

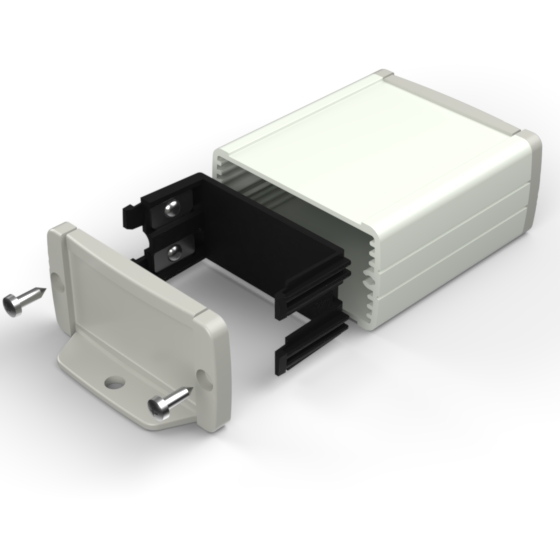

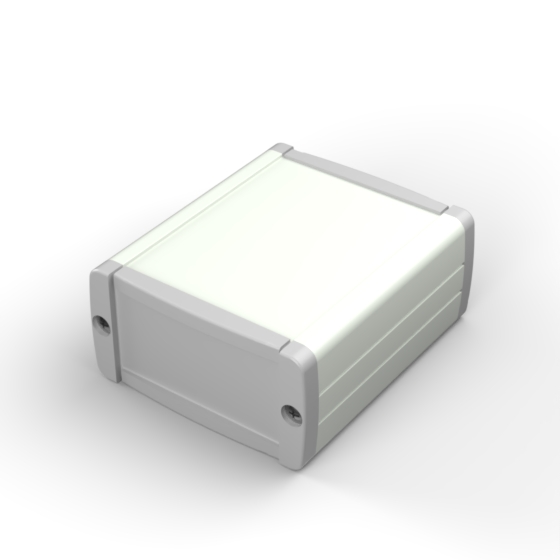

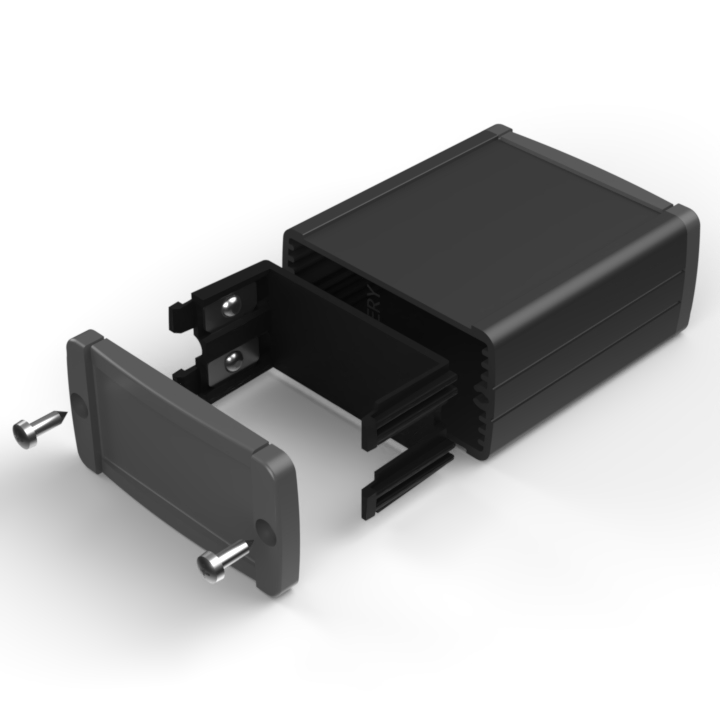

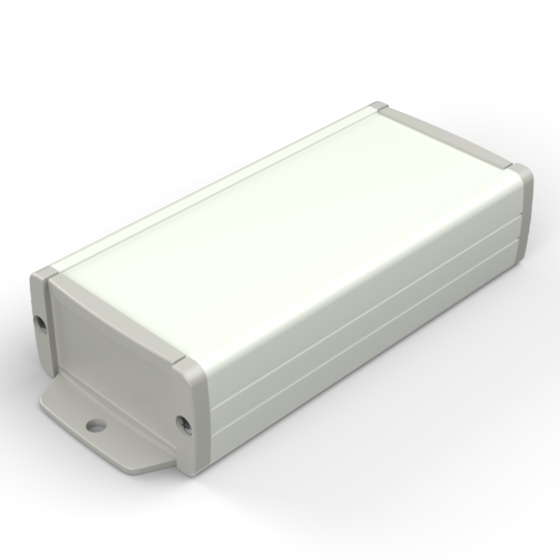

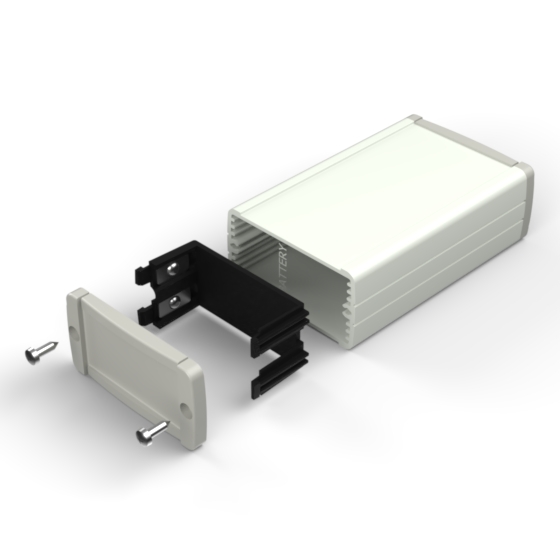

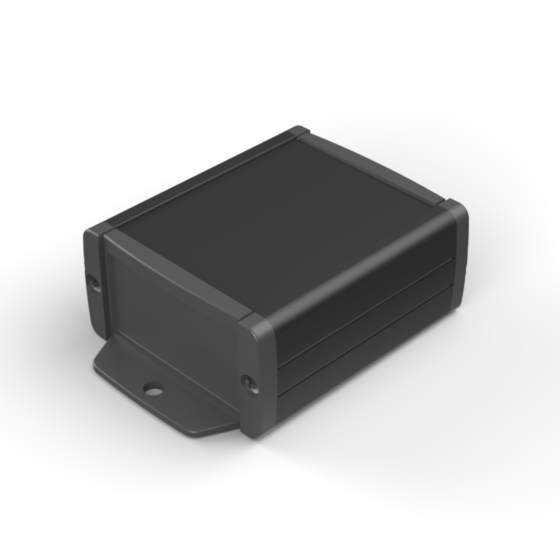

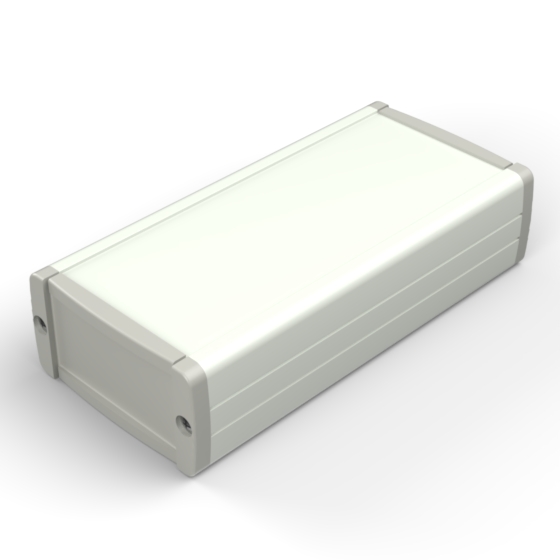

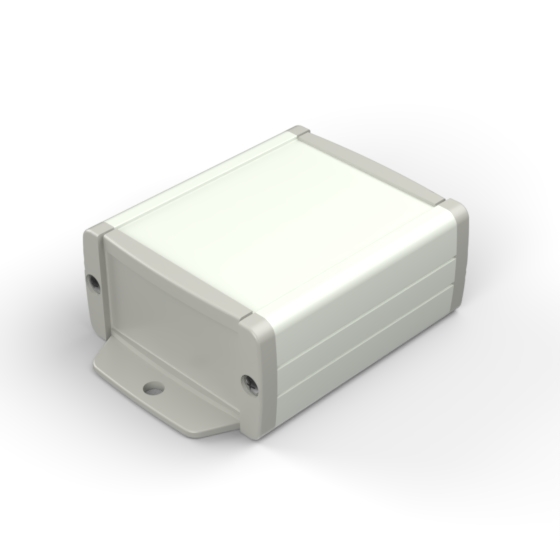

Extruded aluminium cases with high quality painted finishing. Two ABS front panels, internal slots for PCB’s and a recessed area for a keypad membrane. The model with “-B” has a battery compartment for two 1,5V mignon-cells (AA) or one 9V battery (PP3). Twelve standard models are available with different sizes. Closing by four screws.

Details

Products

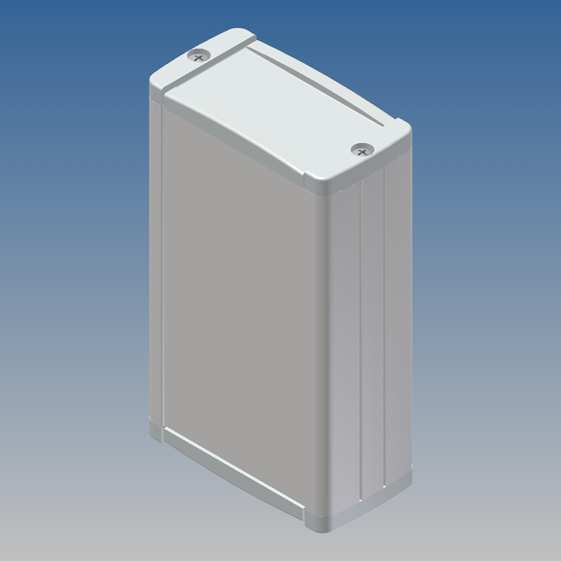

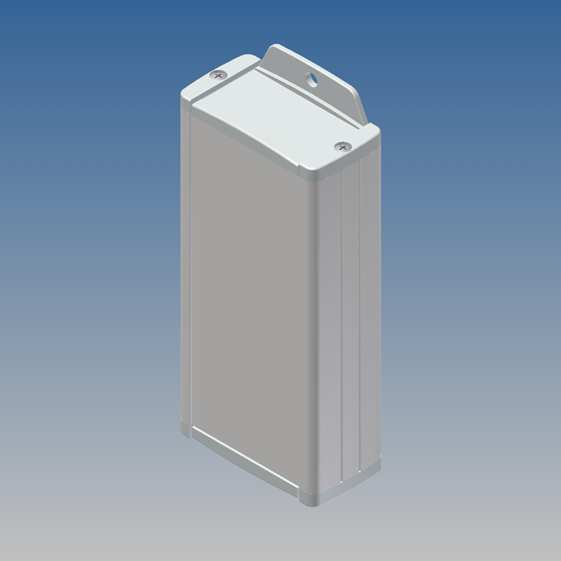

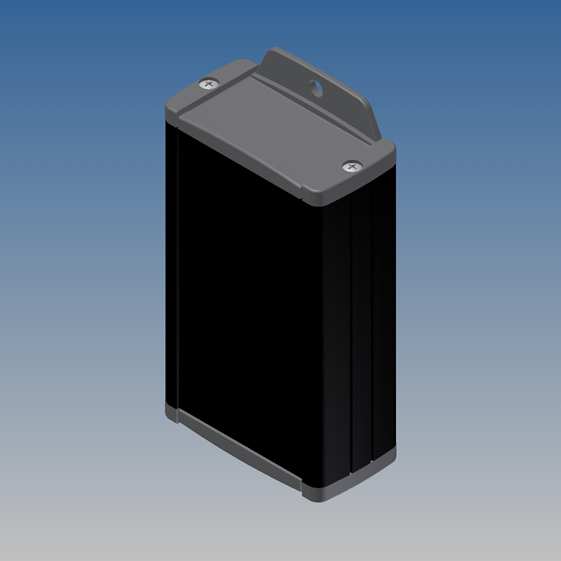

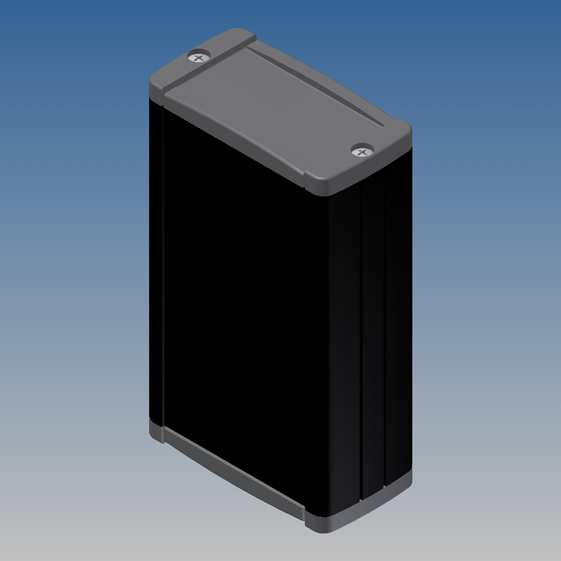

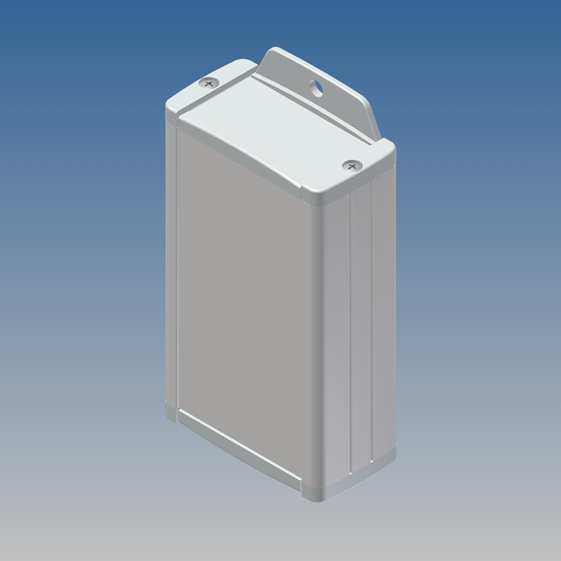

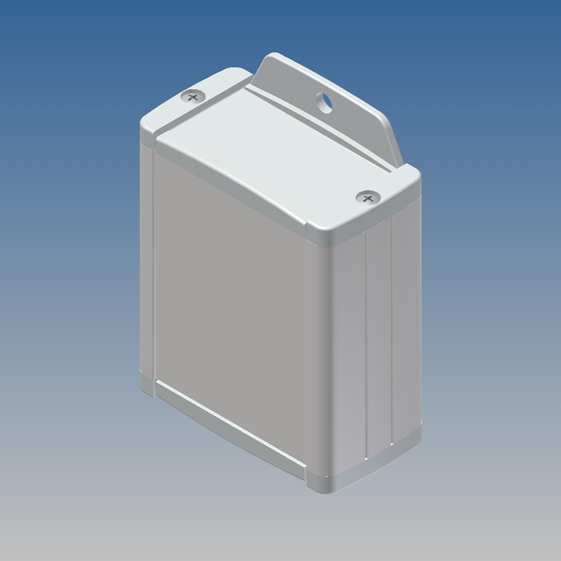

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other
TEKAL-11.29 70 59,9 30,9 9004 7012
ALLOY 6060  -  1640 AS 60 54,5 4 - ALP-1
PDF
DWG
View
TEKAL-11.30 70 59,9 30,9 9002 9018
ALLOY 6060  -  1640 AS 60 54,5 4 - ALP-1
PDF
DWG
View
TEKAL-11/E.29 70 59,9 30,9 9004 7012
ALLOY 6060  -  1640 AS 60 54,5 4 - ALP-1
PDF
DWG
View
TEKAL-11/E.30 70 59,9 30,9 9002 9018
ALLOY 6060  -  1640 AS 60 54,5 4 - ALP-1
PDF
DWG
View

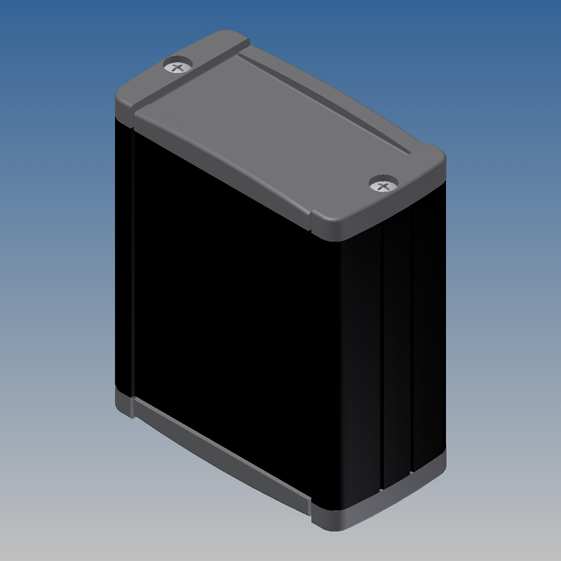

TEKAL-11B.29 70 59,9 30,9 9004 7012
ALLOY 6060  -  1640 AS 38 54,5 4 1 x 9V ALP-1
PDF
DWG
View

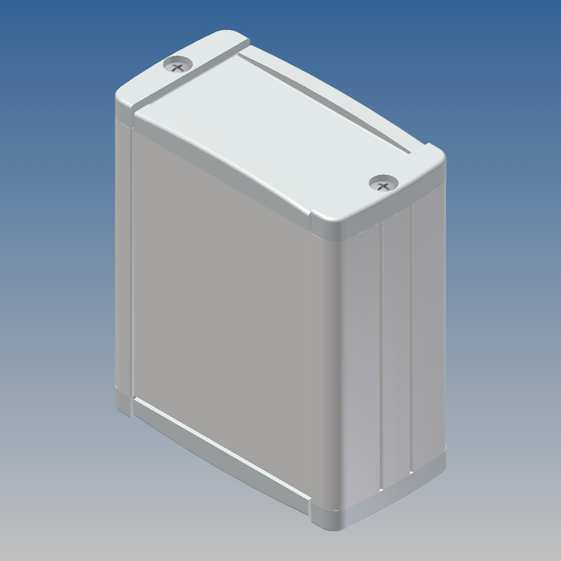

TEKAL-11B.30 70 59,9 30,9 9002 9018
ALLOY 6060  -  1640 AS 38 54,5 4 1 x 9V ALP-1
PDF
DWG
View

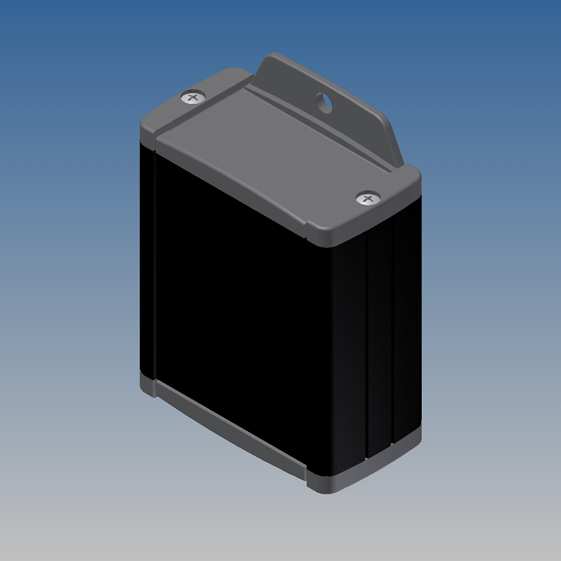

TEKAL-11B/E.29 70 59,9 30,9 9004 7012
ALLOY 6060  -  1640 AS 38 54,5 4 1 x 9V ALP-1
PDF
DWG
View
TEKAL-11B/E.30 70 59,9 30,9 9002 9018
ALLOY 6060  -  1640 AS 38 54,5 4 1 x 9V ALP-1
PDF
DWG
View
TEKAL-12.29 100 59,9 30,9 9004 7012
ALLOY 6060  -  1640 AS 90 54,5 4 - ALP-1
PDF
DWG
View
TEKAL-12.30 100 59,9 30,9 9002 9018
ALLOY 6060  -  1640 AS 90 54,5 4 - ALP-1
PDF
DWG
View
TEKAL-12/E.29 100 59,9 30,9 9004 7012
ALLOY 6060  -  1640 AS 90 54,5 4 - ALP-1
PDF
DWG
View
TEKAL-12/E.30 100 59,9 30,9 9002 9018
ALLOY 6060  -  1640 AS 90 54,5 4 - ALP-1
PDF
DWG
View
TEKAL-12B.29 100 59,9 30,9 9004 7012
ALLOY 6060  -  1640 AS 68 54,5 4 1 x 9V ALP-1
PDF
DWG
View
TEKAL-12B.30 100 59,9 30,9 9002 9018
ALLOY 6060  -  1640 AS 68 54,5 4 1 x 9V ALP-1
PDF
DWG
View
TEKAL-12B/E.29 100 59,9 30,9 9004 7012
ALLOY 6060  -  1640 AS 68 54,5 4 1 x 9V ALP-1
PDF
DWG
View
TEKAL-12B/E.30 100 59,9 30,9 9002 9018
ALLOY 6060  -  1640 AS 68 54,5 4 1 x 9V ALP-1
PDF
DWG
View

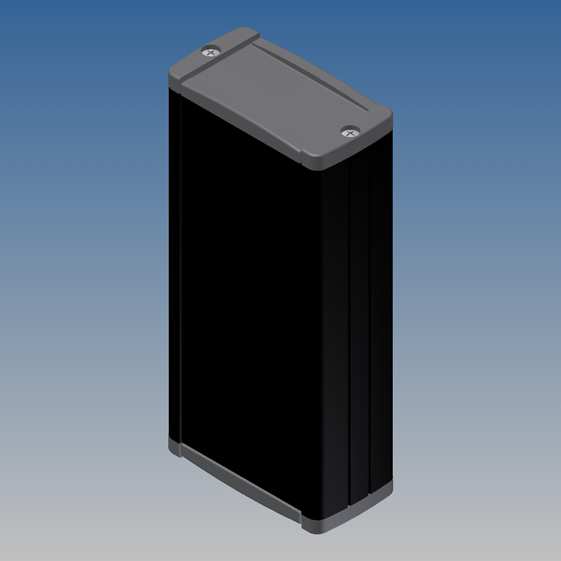

TEKAL-13.29 125 59,9 30,9 9004 7012
ALLOY 6060  -  1640 AS 115 54,5 4 - ALP-1
PDF
DWG
View
TEKAL-13.30 125 59,9 30,9 9002 9018
ALLOY 6060  -  1640 AS 115 54,5 4 - ALP-1
PDF
DWG
View
TEKAL-13/E.29 125 59,9 30,9 9004 7012
ALLOY 6060  -  1640 AS 115 54,5 4 - ALP-1
PDF
DWG
View
TEKAL-13/E.30 125 59,9 30,9 9002 9018
ALLOY 6060  -  1640 AS 115 54,5 4 - ALP-1
PDF
DWG
View
TEKAL-13B.29 125 59,9 30,9 9004 7012
ALLOY 6060  -  1640 AS 93 54,5 4 1 x 9V ALP-1
PDF
DWG
View

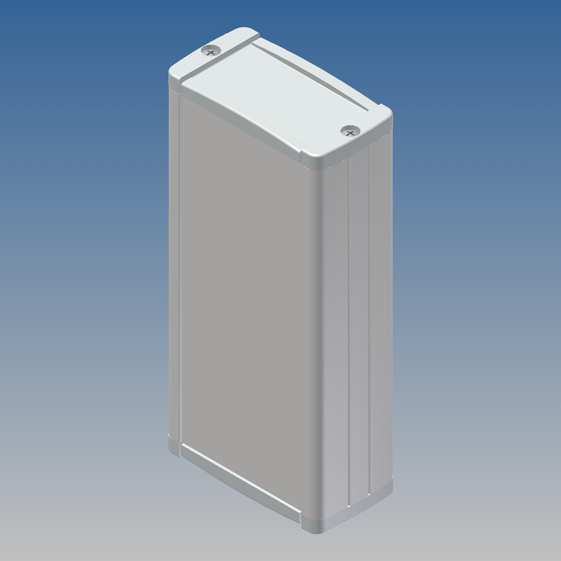

TEKAL-13B.30 125 59,9 30,9 9002 9018
ALLOY 6060  -  1640 AS 93 54,5 4 1 x 9V ALP-1
PDF
DWG
View

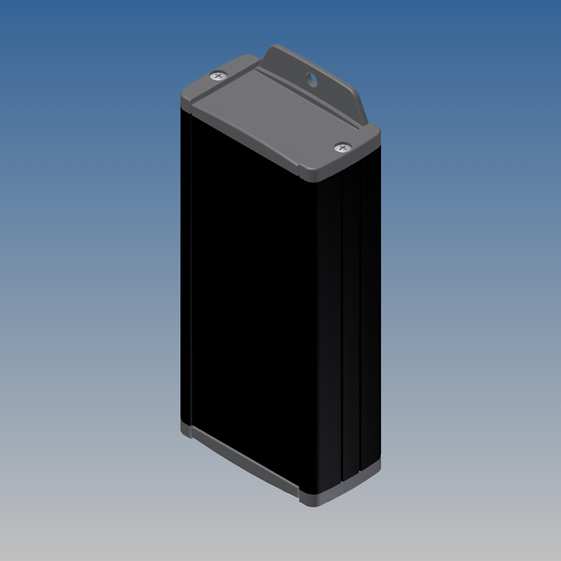

TEKAL-13B/E.29 125 59,9 30,9 9004 7012
ALLOY 6060  -  1640 AS 93 54,5 4 1 x 9V ALP-1
PDF
DWG
View
TEKAL-13B/E.30 125 59,9 30,9 9002 9018
ALLOY 6060  -  1640 AS 93 54,5 4 1 x 9V ALP-1
PDF
DWG
View
