IO-TEK

Family Pocket - Electronic enclosures - Plastic

Description

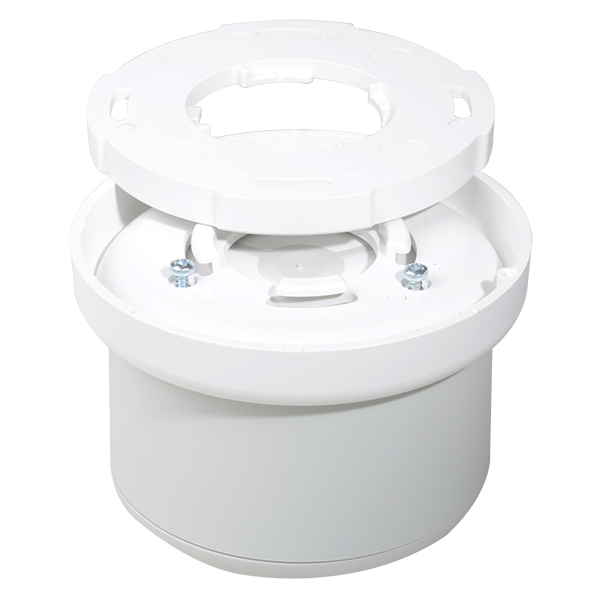

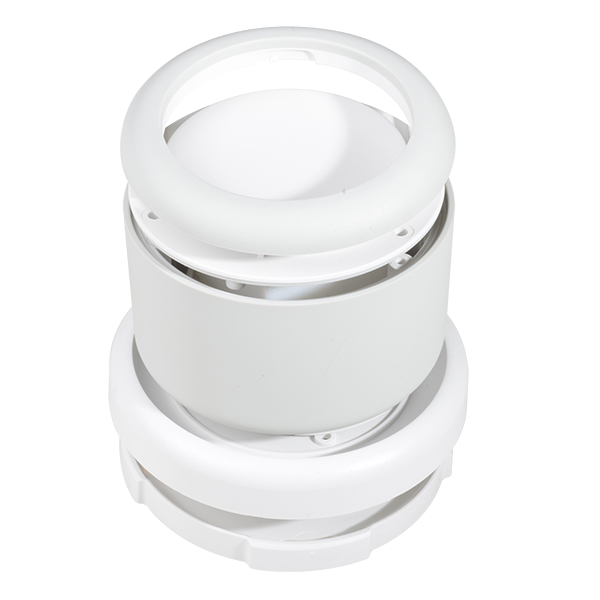

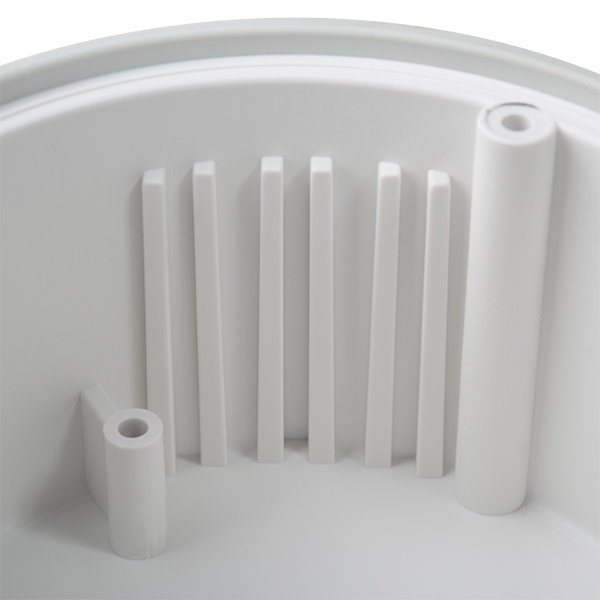

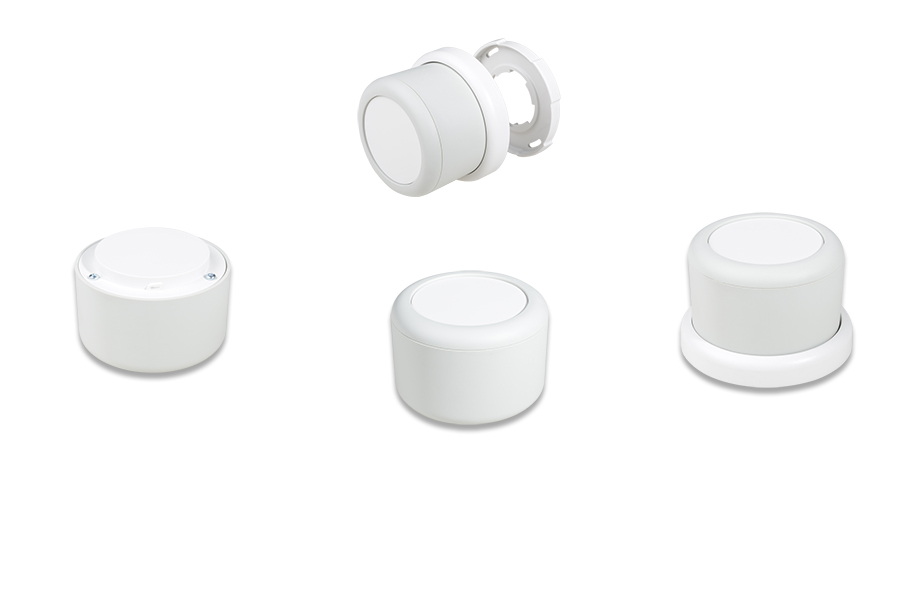

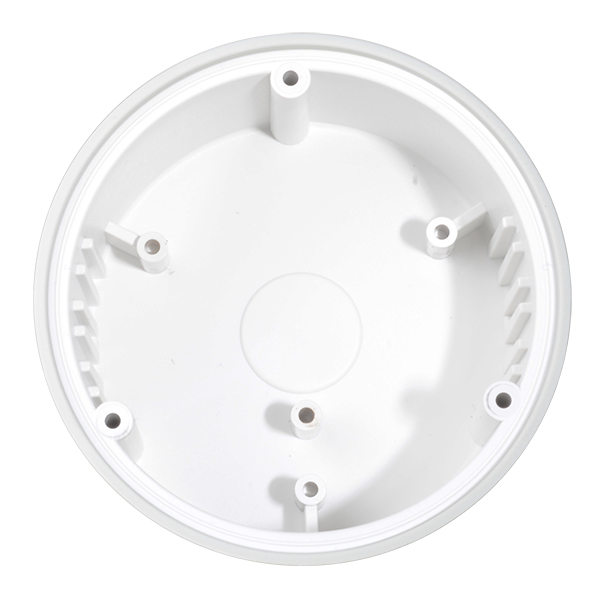

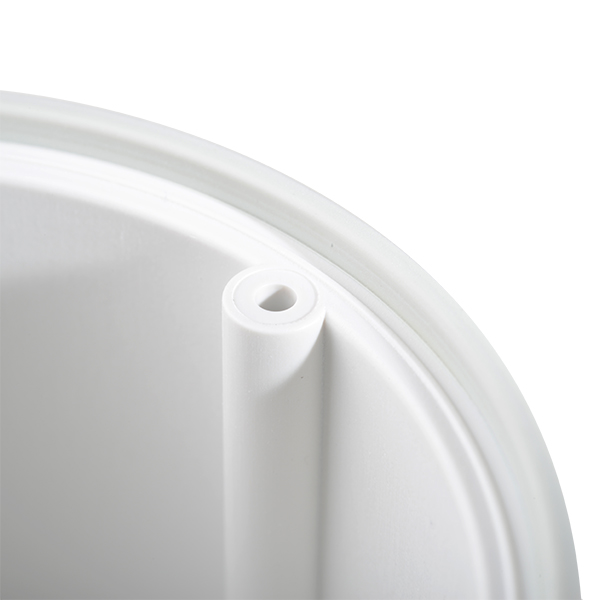

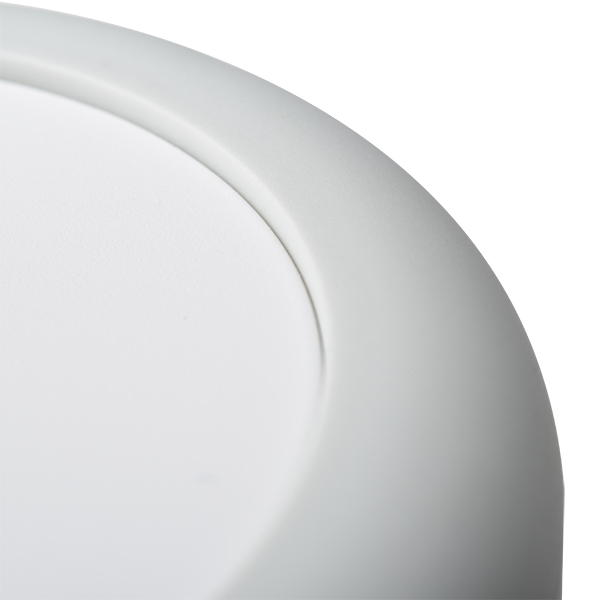

Rounded and contemporary design for IO-TEK case, multi-shot injection, expressly dedicated to the IoT world. Ideal for environment monitoring and setting user interface. Internal slots and pillars for easy and multiple PCB assembly. Space for standard 2X AAA battery holder (not included). Fast closing by 3 screws nicely hidden from a top ring element and easy access for maintenance services.The excellent sealing system also guarantees an IP65 certified watertight seal. A wall fixing bracket is available as an accessory for standard flush-mounted boxes.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

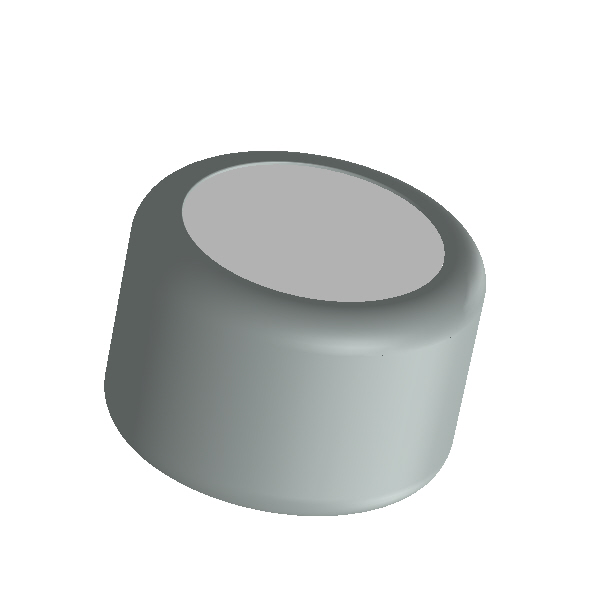

IO-TEK1.30
NEW
65 65 43,6 9002 9018
P2H-AT  -  8020     3 2 X AAA PDF
DWG
View

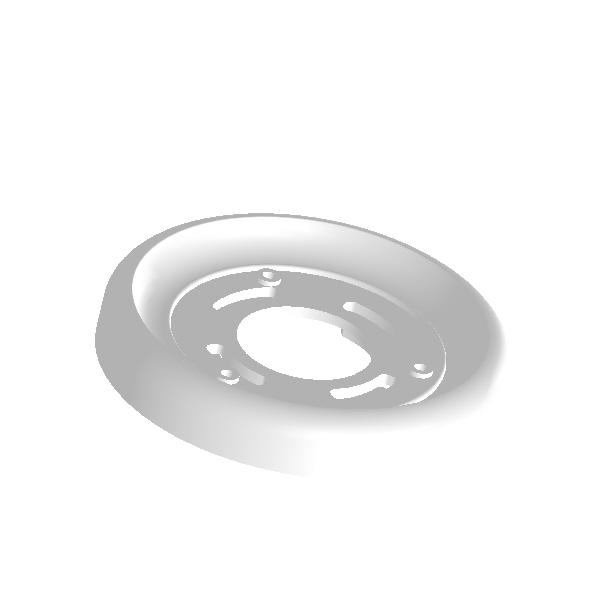

MT-IO.7
NEW
74,5 74,5 12 9002
P2H-AT         PDF
DWG
View
  • Color (Ral): 9002
  • Material: P2H-AT
  • MAX PCB L (mm):
  • MAX PCB W (mm):
  • Screws:
  • Battery:
  • Accessories:
  • Drawings:  PDF  DWG
