Family Strumentalia - Electronic enclosures - Plastic

Description

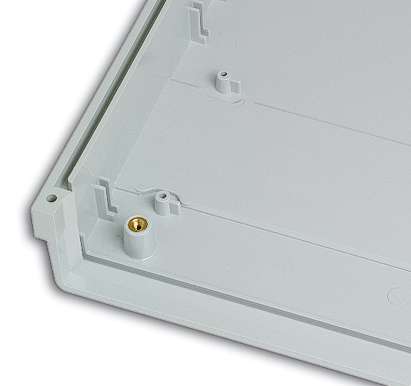

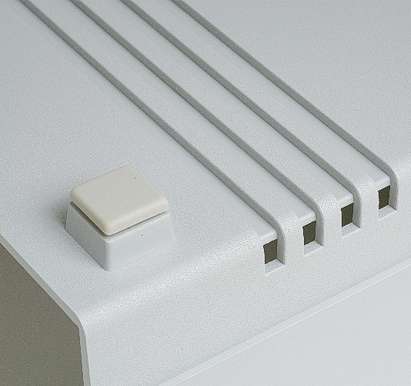

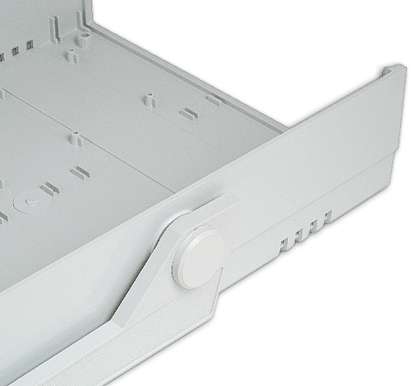

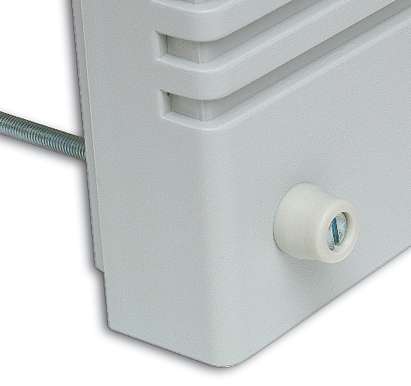

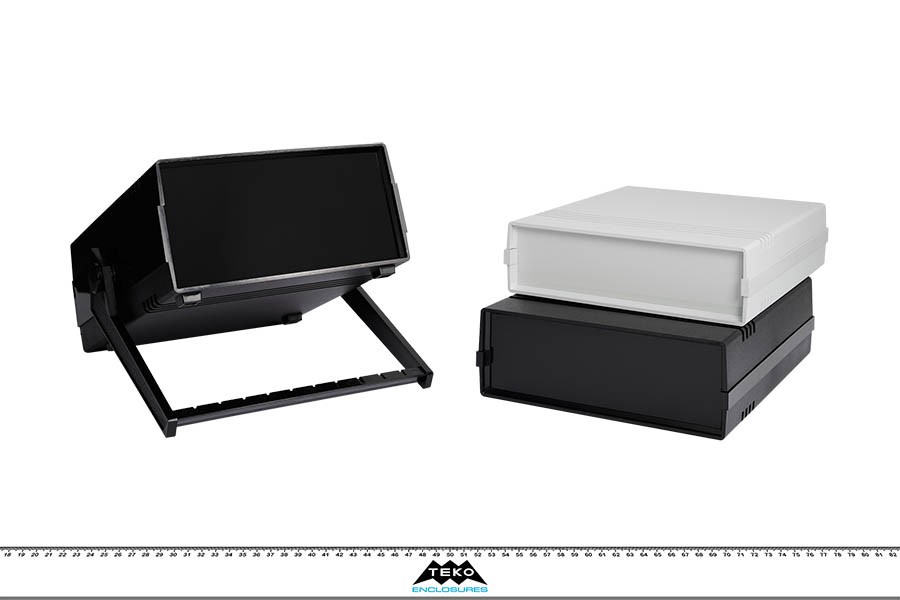

Cases with the front and rear panels moulded in ABS. The base and the cover have integral PCB guides and mounting studs. The models “761” and “762” come complete with easy-to-grip, multi-tilt support handles. Matt surface finish. Closing by four screws with plastic feet.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

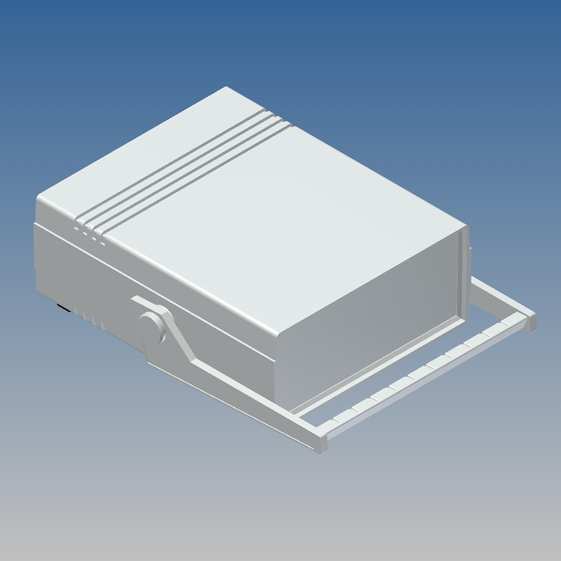

761.5 268 216 95 9018
AG-ATY 240 200 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

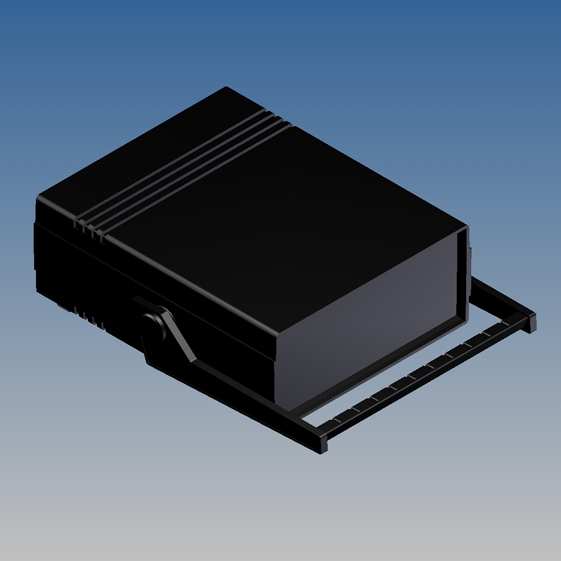

761.9 268 216 95 9004
P2H-AT 240 200 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

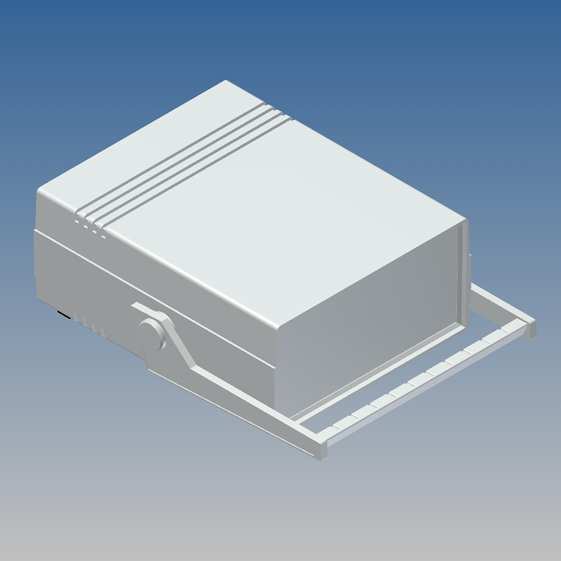

762.5 268 216 108 9018
AG-ATY 240 200 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

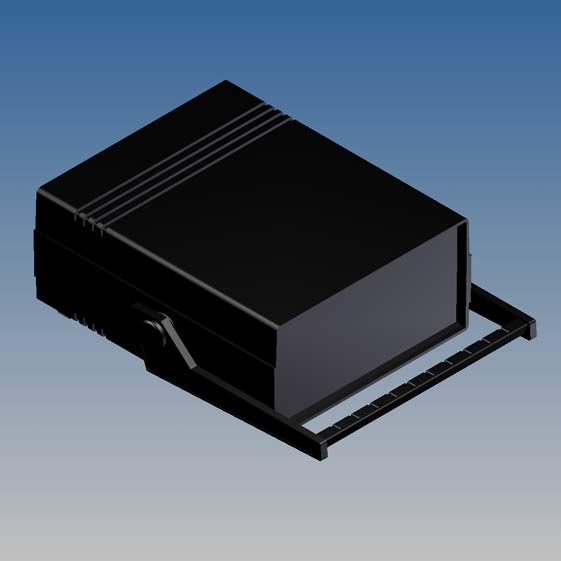

762.9 268 216 108 9004
P2H-AT 240 200 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

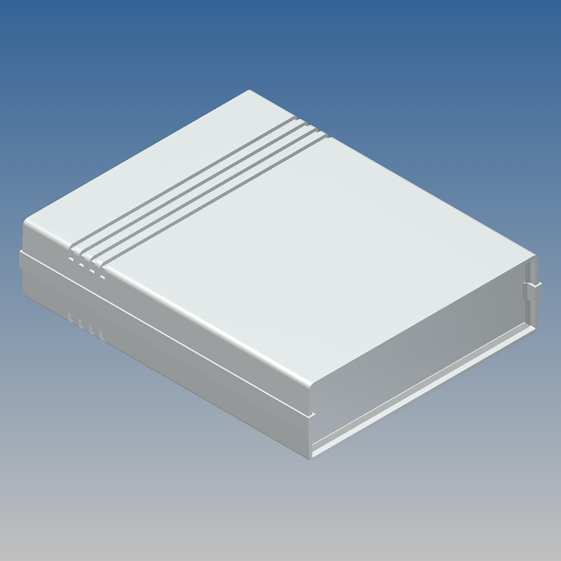

765.5 268 216 63 9018
AG-ATY 240 200 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

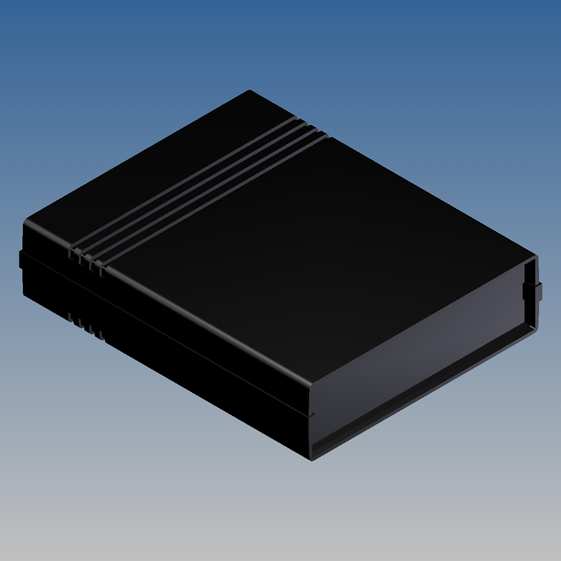

765.9 268 216 63 9004
P2H-AT 240 200 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

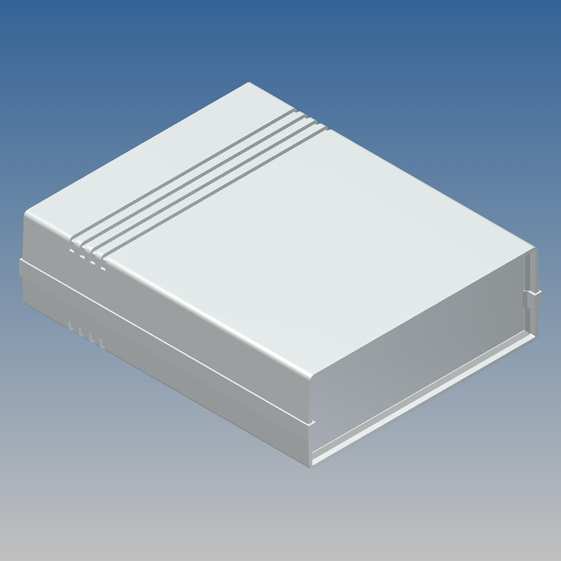

766.5 268 216 76 9018
AG-ATY 240 200 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

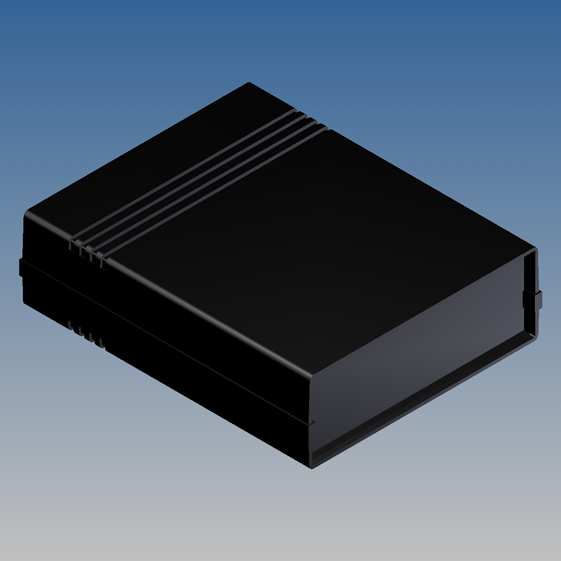

766.9 268 216 76 9004
P2H-AT 240 200 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

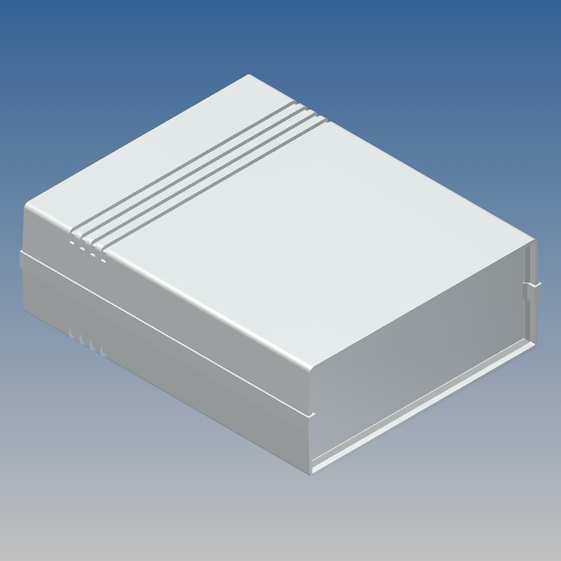

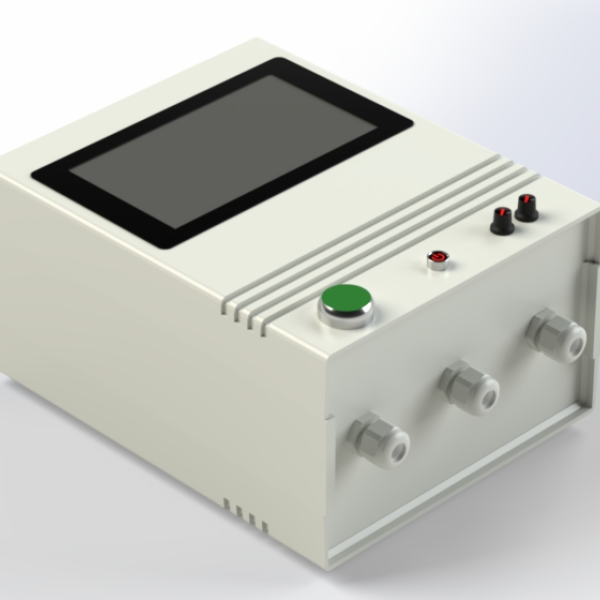

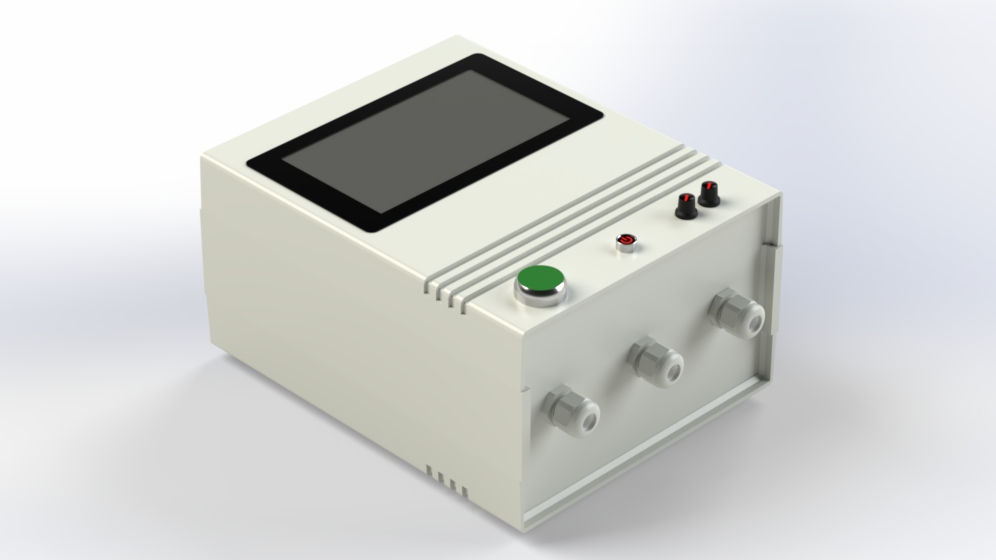

767.5 268 216 89 9018
AG-ATY 240 200 4 - PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
767.9 268 216 89 9004
P2H-AT 240 200 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 240
  • MAX PCB W (mm): 200
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
