TEKAL 4

Family Aluminium - Electronic enclosures - Metal

Description

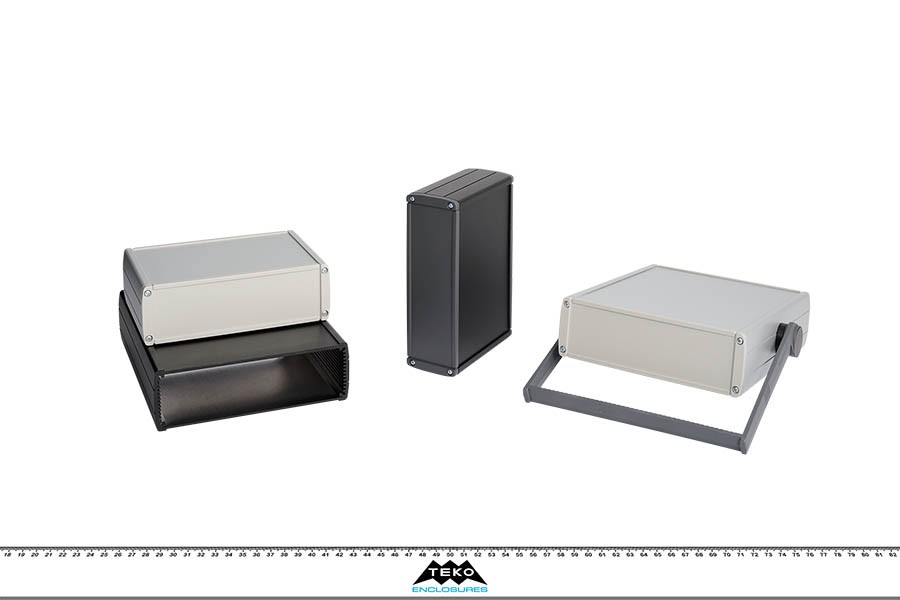

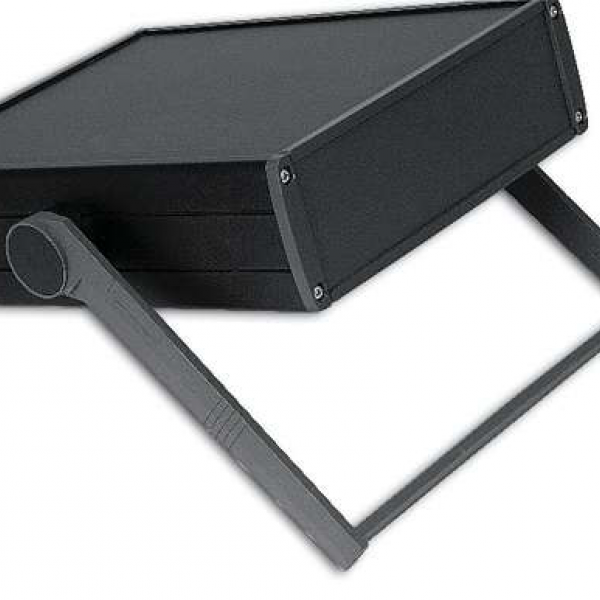

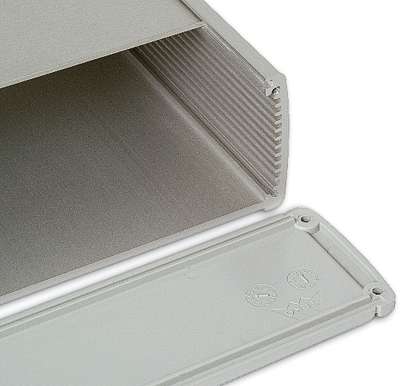

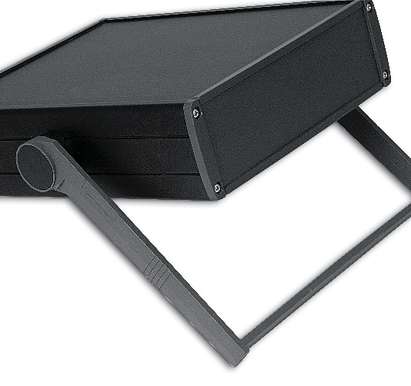

Extruded aluminium cases with high quality painted finishing and sliding cover aluminium panel. Two ABS front panels, internal slots for PCB’s. The models with “-H” have a plastic handle bar with eight position locking. Two different lengths. Closing by eight screws.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

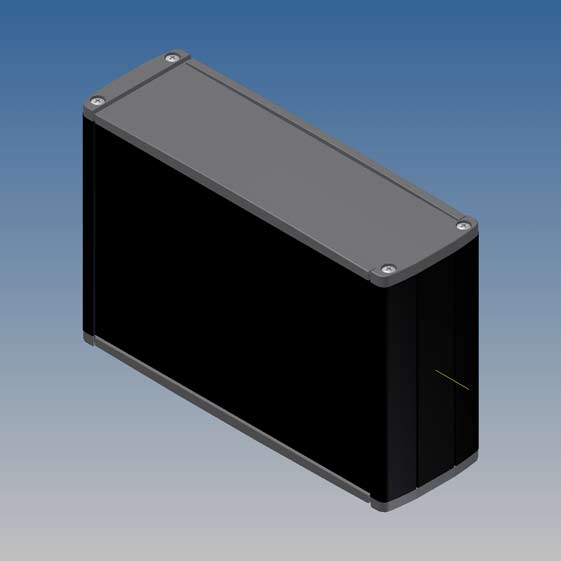

TEKAL-41.29 110 167 53 9004 7012
ALLOY 6060  -  1640 AS 100 160 8 - H2
ALP-4
PDF
DWG
View

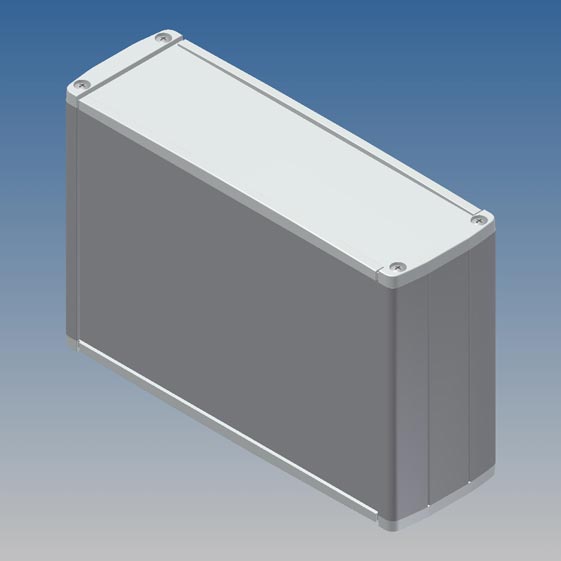

TEKAL-41.31 110 167 53 9006 9018
ALLOY 6060  -  1640 AS 100 160 8 - H2
ALP-4
PDF
DWG
View

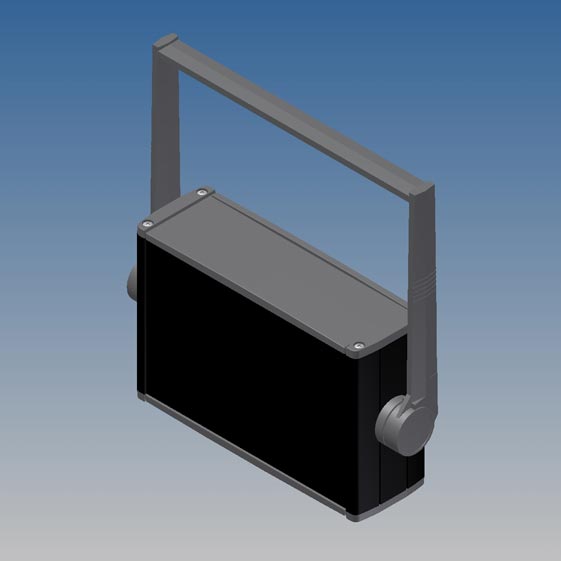

TEKAL-41/H.29 110 167 53 9004 7012
ALLOY 6060  -  1640 AS 100 160 8 - ALP-4
PDF
DWG
View

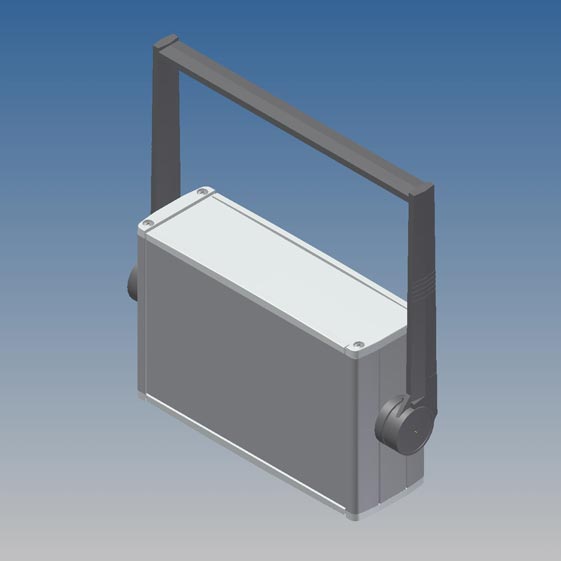

TEKAL-41/H.31 110 167 53 9006 9018
ALLOY 6060  -  1640 AS 100 160 8 - ALP-4
PDF
DWG
View

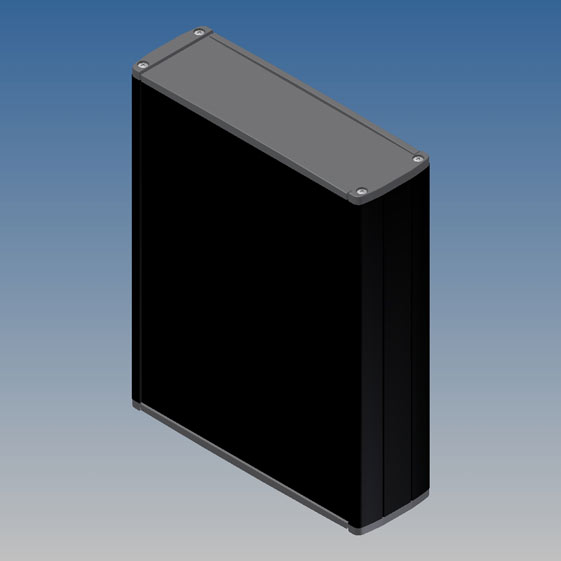

TEKAL-42.29 210 167 53 9004 7012
ALLOY 6060  -  1640 AS 200 160 8 - H2
ALP-4
PDF
DWG
View

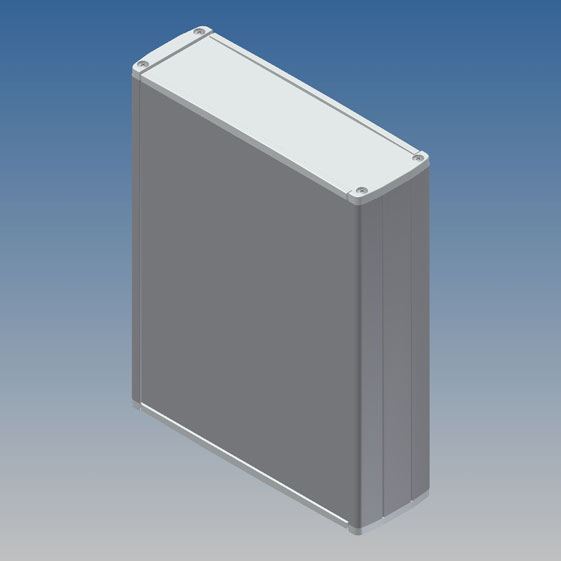

TEKAL-42.31 210 167 53 9006 9018
ALLOY 6060  -  1640 AS 200 160 8 - H2
ALP-4
PDF
DWG
View

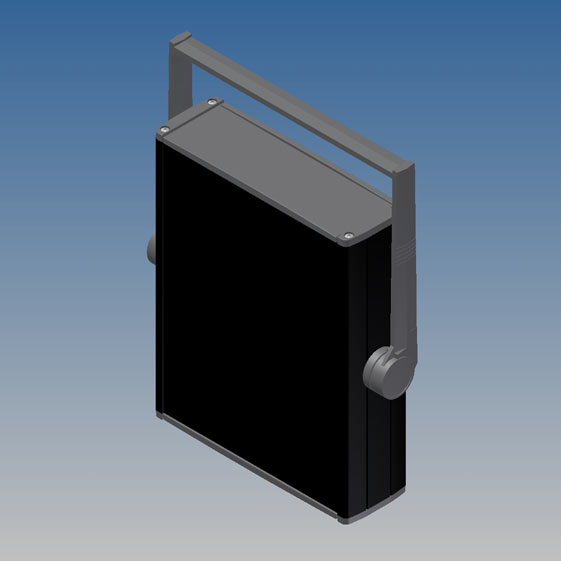

TEKAL-42/H.29 210 167 53 9004 7012
ALLOY 6060  -  1640 AS 200 160 8 - ALP-4
PDF
DWG
View

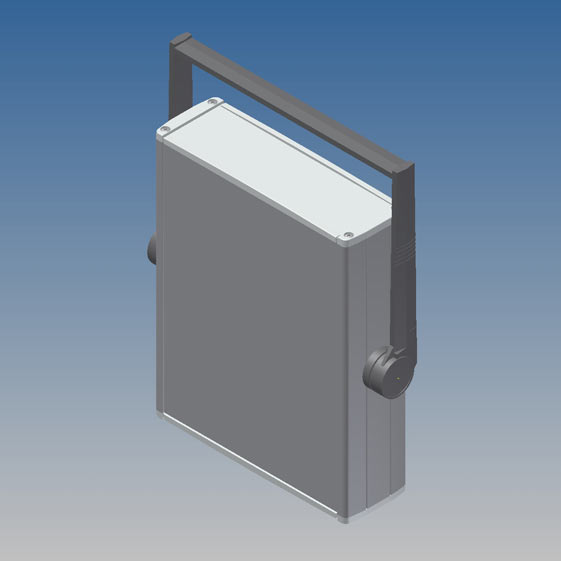

TEKAL-42/H.31 210 167 53 9006 9018
ALLOY 6060  -  1640 AS 200 160 8 - ALP-4
PDF
DWG
View
