DESIGNER

Family Front Panel - Electronic enclosures - Plastic

Description

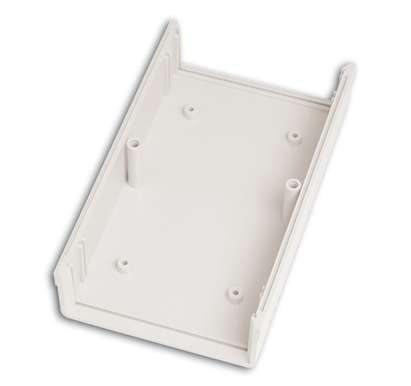

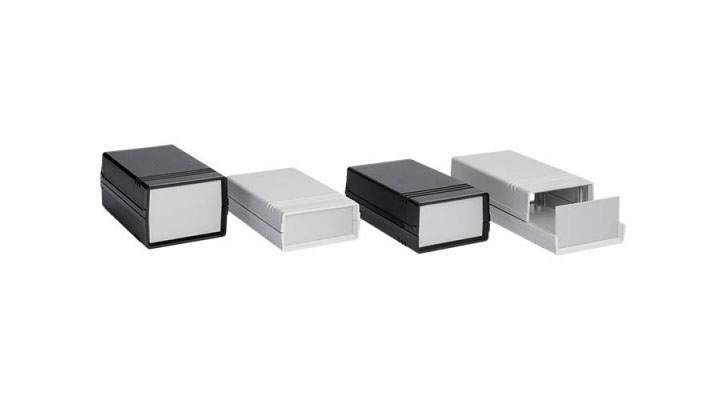

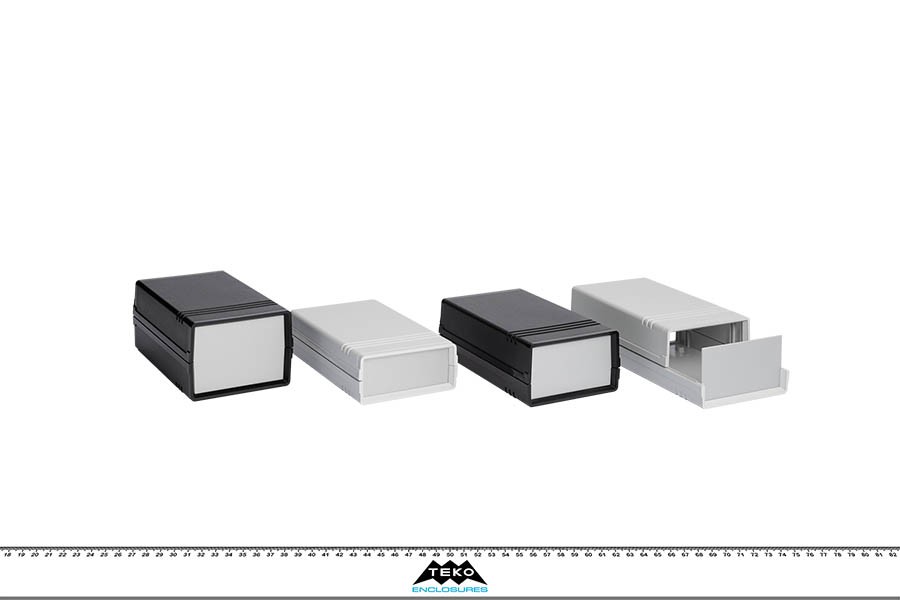

An ABS enclosure with two 1 mm aluminium panels. Each half-shells has mounting studs. Matt surface finish. Closing by only two screws. Available with plastic panels (Mod. PPD1. PPD2, PPD3).

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

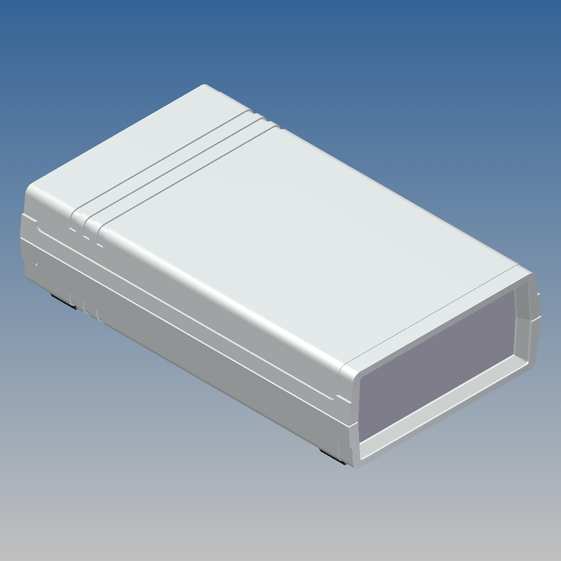

10001.5 145 85 37 9018
AG-ATY 126 72 2 - PPD1
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 126
  • MAX PCB W (mm): 72
  • Screws: 2
  • Battery: -
  • Accessories: PPD1
  • Drawings:  PDF  DWG

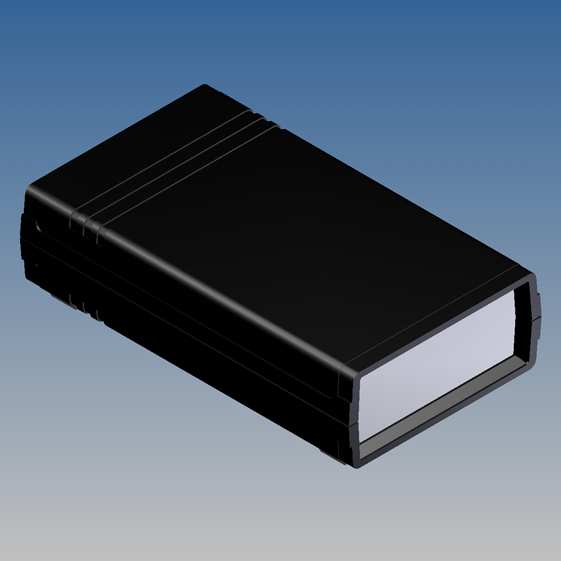

10001.9 145 85 37 9004
P2H-AT 126 72 2 - PPD1
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 126
  • MAX PCB W (mm): 72
  • Screws: 2
  • Battery: -
  • Accessories: PPD1
  • Drawings:  PDF  DWG

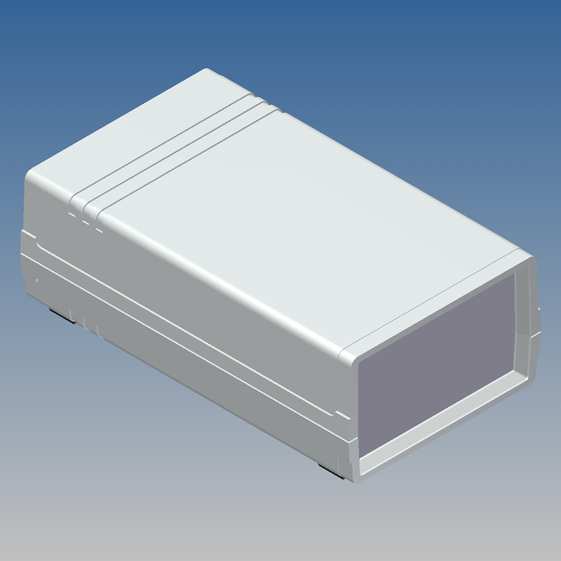

10002.5 145 85 49 9018
AG-ATY 126 72 2 - PPD2
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 126
  • MAX PCB W (mm): 72
  • Screws: 2
  • Battery: -
  • Accessories: PPD2
  • Drawings:  PDF  DWG

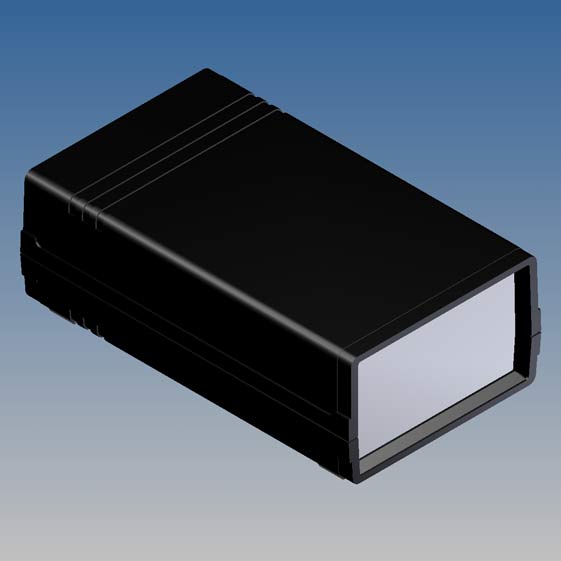

10002.9 145 85 49 9004
P2H-AT 126 72 2 - PPD2
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 126
  • MAX PCB W (mm): 72
  • Screws: 2
  • Battery: -
  • Accessories: PPD2
  • Drawings:  PDF  DWG

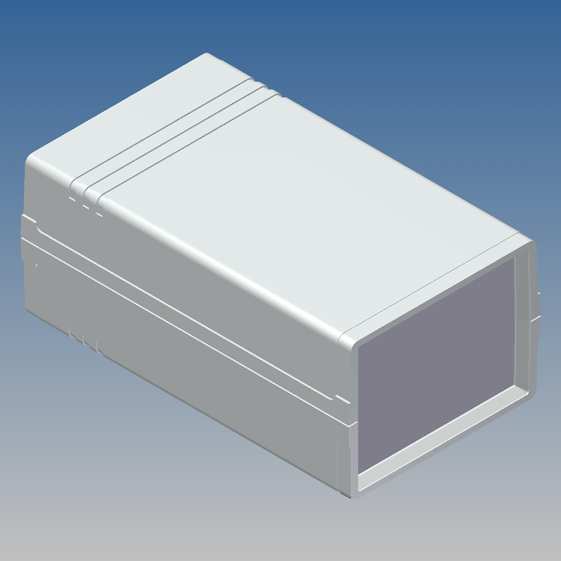

10003.5 145 85 61 9018
AG-ATY 126 72 2 - PPD3
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 126
  • MAX PCB W (mm): 72
  • Screws: 2
  • Battery: -
  • Accessories: PPD3
  • Drawings:  PDF  DWG
10003.9 145 85 61 9004
P2H-AT 126 72 2 - PPD3
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 126
  • MAX PCB W (mm): 72
  • Screws: 2
  • Battery: -
  • Accessories: PPD3
  • Drawings:  PDF  DWG
